Gates TM-SB10-D-8-E-SB-PTL 8' Conveyor w/ Hatco Wells
Gates 8-foot tray make-up conveyor with 8 Hatco heated wells, Penta-Drive DC motor speed control, on casters.
Specifications
| Brand | Gates Manufacturing |
|---|---|
| Model | TM-SB10-D-8-E-SB-PTL |
| Serial Number | 02229 |
| Conveyor Length | 8 ft |

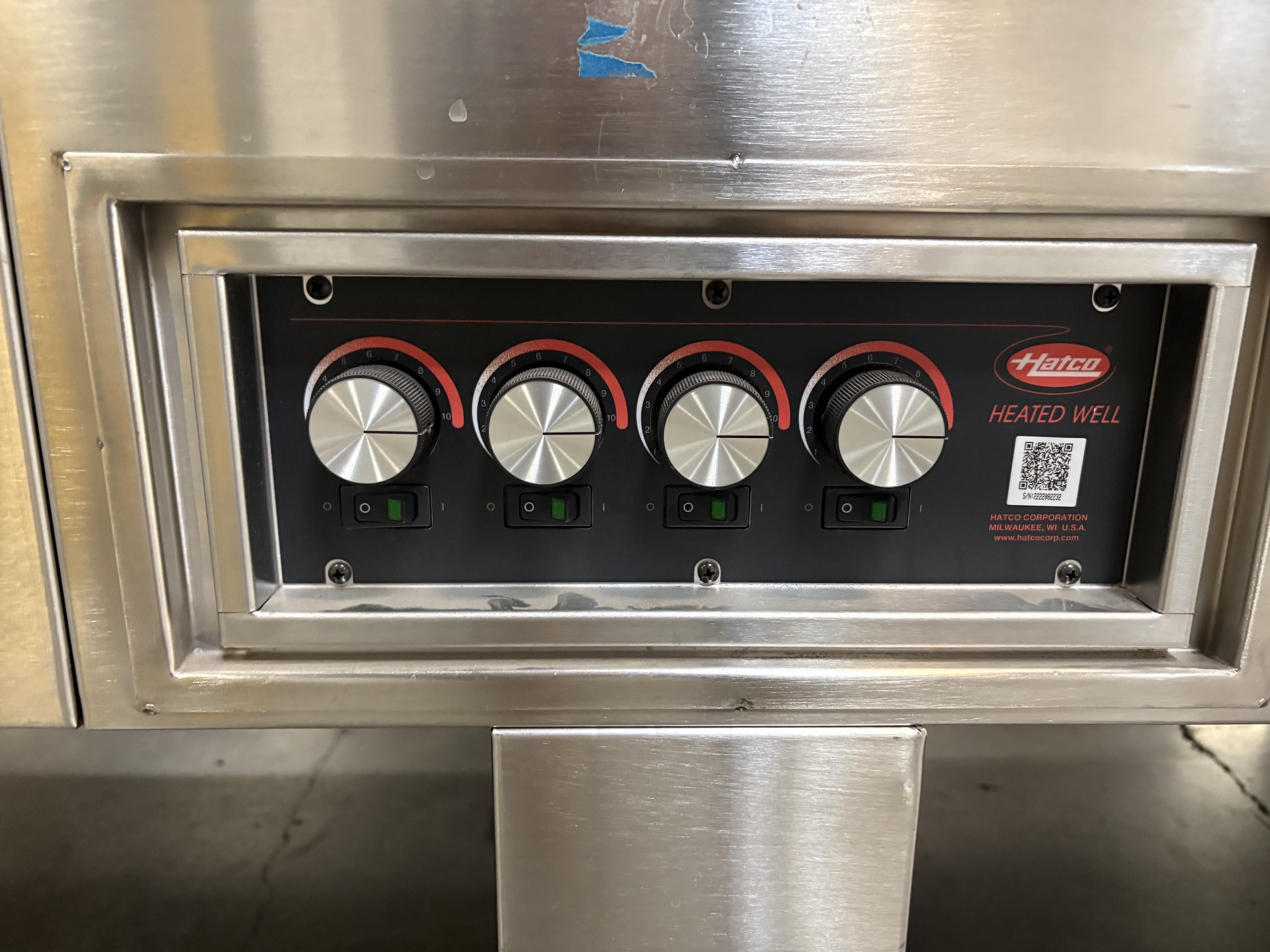

| Heated Wells | 8 (Hatco) |
| Belt Load | 5 lbs/ft belt maximum |
| Belt Speed | 0–40 FPM maximum |
| Conveyor Motor Rating | 0.5 HP, 240V, 60Hz, 1 Phase |
| Electrical Raceway | 208V, 60Hz, 3 Phase, 50 Amp Maximum |
| Speed Control | Penta-Drive DC Motor Speed Control |
| Construction | Stainless Steel |
| Listings | UL Listed (547F), NSF |
| Mobility | Heavy-duty casters |
| Product Completion Date | 10/21/2022 |
Pickup & shipping
Pickup at our warehouse in Las Vegas, NV is free and usually available the next business day after purchase.
Local pickup preferred. Freight shipping available — contact for quote.
